UltraVive
Precision You Can See.
The High Intensity Focused Ultrasound (HIFU) safely and effectively delivers focused ultrasound technology at specified depths and produces focal point temperatures of 60-70C to stimulate new collagen without damaging or disrupting epidermal skin tissue.
Handpiece
Apolomed’s HIFU system utilizes advanced high-intensity focused ultrasound technology to deliver precise energy at multiple adjustable depths, typically ranging from 1.5 mm to 16 mm, targeting both superficial and deeper structural layers of the skin. The device is operated through a high-resolution touchscreen interface, allowing for accurate control of energy, line density, and treatment depth. Its ergonomic, clinic-friendly design ensures ease of use and efficient workflow, while interchangeable cartridges enable versatile applications including skin tightening, lifting, and body contouring. With rapid shot delivery and consistent energy output, the system creates controlled thermal coagulation points (TCPs) to stimulate collagen remodeling and long-term tissue contraction, providing customizable and effective non-invasive treatment options.

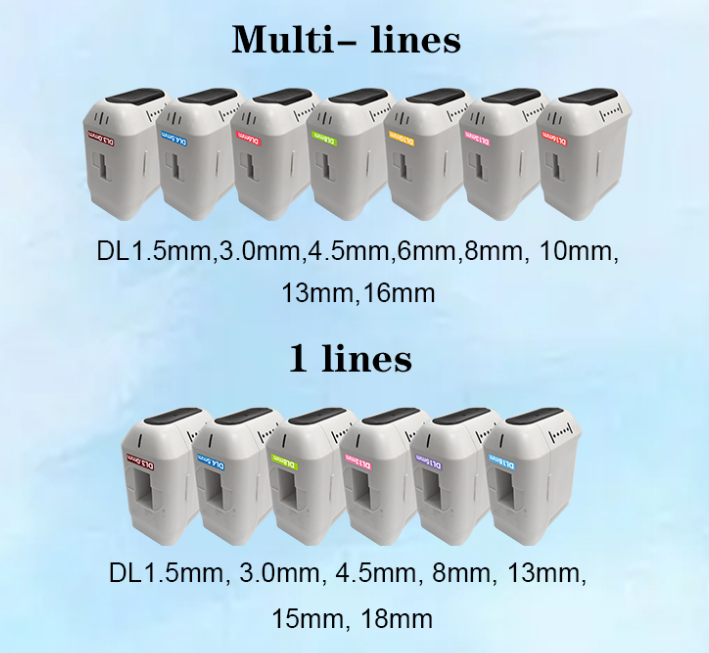

Multiple specifications of cartridges are available (1.5mm, 3mm, 4.5mm, 6mm, 8mm, 10mm, 13mm, 16mm ),
Advanced medical power supply (IGBT)
Our advanced IGBT based medical power supply delivers exceptional efficiency and performance. Compared to conventional systems, it achieves significantly higher power conversion efficiency with reduced energy loss and minimal heat generation, ensuring stable and reliable operation during extended clinical use.
Operating at frequencies reaching several hundred kilohertz, the system provides ultra fast response times measured in tens of nanoseconds. This allows precise energy delivery and superior pulse control for consistent treatment outcomes.
The highly integrated IGBT module design results in a more compact footprint with reduced weight, improving overall system reliability while supporting high power demands.
| Category | Specification |
|---|---|
| Frequency | 4MHz |
| Cartridges | 1.5mm,3mm,4.5mm,6mm,8mm,10mm,13mm,16mm |
| Energy | 0.2J-3.0J |
| Length | 5mm-25mm |
| Width | 0mm-10mm |
| Cooling | Air Cooling |
| Capacitive RF Tip Diameter (HS-511C Only) | 10mm,30mm,40mm,50mm,60mm,70mm,80mm |
| Device Size (L × W × H) | Tabletop-35 x 42 x 22 cm Standalone-52 x 52 x 129 cm |
| Device Weight | Tabletop-6.5kg Standalone-27kg |
What’s Included
Each device package arrives with the core components and accessories needed for a smooth setup, ensuring you can integrate the equipment into your workflow quickly and confidently. Everything is organized to support reliable, everyday use from the start.
Support That Adds Real Value
Every purchase is backed by guided onboarding and a full-service warranty that covers both the device and key consumables. This level of support helps protect your investment while ensuring consistent, long-term performance.
Comprehensive Education & Training
To help your team get the most out of the technology, each device includes access to in-depth education and training resources. From operational guidance to best-practice techniques, these programs equip users with the knowledge and confidence needed to deliver safe, effective, and consistent treatments.
Ultravive Additional Details

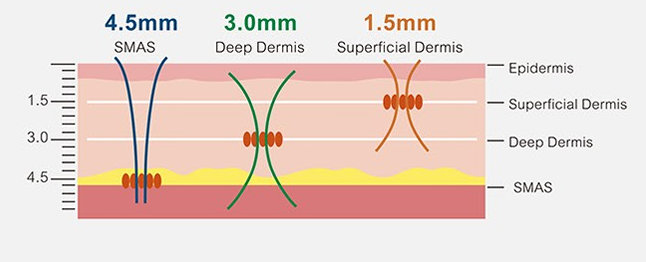

This compact high-intensity focus ultrasound (HIFU) system is engineered for versatility and precision, delivering high-intensity focused ultrasound energy beneath the skin’s surface, creating precise thermal coagulation points at controlled depths ranging from approximately 1.5 mm to 16 mm, while leaving the epidermis unharmed. This focused energy allows the device to reach the SMAS (superficial musculoaponeurotic system) layer—the same structural layer targeted in surgical facelifts—enabling genuine lifting effects rather than just surface-level tightening. The ultrasound energy rapidly raises tissue temperature to about 60–70°C at specific focal points, triggering immediate collagen contraction and initiating the body’s natural healing response, which promotes new collagen formation over time. With adjustable parameters such as energy, line density, and interchangeable cartridges, the system offers customizable treatments for facial lifting and body contouring, resulting in gradual, long-lasting tissue tightening and remodeling.
Each device package includes the main unit, handpiece, user manual, device-specific goggles, package-dependent depth cartridges, and a dust cover. Comprehensive training and guided setup ensure smooth implementation for new users, while a two-year full-service warranty—including consumables—provides peace of mind and dependable long-term operation.
Refresh Your Skin and Confidence
The Apolomed HIFU system is a multi-line, high-intensity focused ultrasound device designed for non-invasive facial lifting, skin tightening, and body contouring. It operates at approximately 4 MHz and uses interchangeable cartridges (1.5 mm, 3.0 mm, 4.5 mm for face and up to 16 mm for body) to deliver focused energy at precise depths, including the SMAS layer, enabling true structural lifting. The system features adjustable energy output (typically 0.2–3.0 J), along with smart and professional modes for customizable or preset treatments via a touchscreen interface. Its multi-line delivery technology allows for faster treatment times and consistent energy distribution, while each cartridge provides up to 20,000 lines, ensuring efficiency and longevity. By generating controlled thermal coagulation points at 60–70°C, the HS-510 stimulates collagen remodeling and tissue contraction, delivering gradual, long-lasting aesthetic results without surgery or downtime.
HIFU Package
Delivery for this device comes with the main unit, user manual, handpiece, Package dependent depth cartridges, device-specific goggles, and a dust cover. Device support includes an extensive training program and device setup. Additional services include a two-year full-service warranty, including consumables.
HIFU Technical Specs
Learn more about the system’s capabilities and the technology that drives its dependable performance. Explore how its engineered components work together to deliver consistent, high-quality results. See how this platform supports efficient, effective treatments across various aesthetic needs.
Service and Support
We believe long-term success comes from strong partnerships. Apolomed supports distributors and providers before, during, and long after installation through structured product training, clinical education, and responsive technical service.
Our global service network includes regional support teams and dedicated facilities, such as our U.S. distribution and service center in New York. This infrastructure ensures reliable communication, timely service, and consistent support across international markets.
