SculptVive

Precision You Can See.

A diode-laser platform with 980 + 1470 nm wavelengths for body-sculpting, skin-tightening, vascular and rejuvenation workflows.

flexvive

Device overview

SculptVive at a glance

A diode-laser platform with 980 + 1470 nm wavelengths for body-sculpting, skin-tightening, vascular and rejuvenation workflows.

Technology
Diode Laser
Format
Confirm available configuration
Applications to discuss
Skin Tightening & Lifting · Vascular Lesions · Body Sculpting · Skin Rejuvenation
Specifications & documentation
Find model-specific records · Confirm the supplied model and handpieces with Apolomed.
Technical specificationsOpen SculptVive specifications
Wavelength
980nm / 1470nm
Power
980 nm: 15 W / 30 W; 1470 nm: 15 W
Pulse Duration
10-3000ms
Spot Sizes
0.5, 1, 2, 3mm / Fibers of 200, 300, 400, 600, 800, 1000, 1200 μm with SMA 905 connector
Wattage
1600W
Operating System
A-13
Cooling
Air Cooling
Frequency (Hz)
1, 2, 3, 5, 10~50Hz
Device Size (L × W × H)
40 x 44 x 34 cm
Device Weight
20.5Kg
Output modes
CW, single pulse, repeat pulse
Single-pulse energy
980 nm: 0.1–12 J; 1470 nm: 0.1–6 J
Fiber types
Linear and conical
Aiming beam
650 nm red diode, <2 mW
Interface
11.6-inch true-color touchscreen
Electrical Input
100–240 VAC, 50/60 Hz
Compare this device

Application categories support product discussion. They do not establish clearance or suitability for every configuration.

Modal Id "more-details-2"

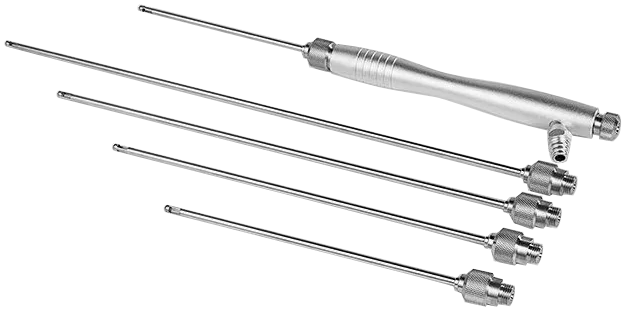

Handpiece

BENEATH THE SURFACE

How the technology works

See how energy is delivered, what it interacts with, and why that interaction matters.

Illustrative optical fiber positioned within a vessel lumen, showing localized thermal interaction near its distal tip.
Fiber-delivered laser energy

Localized energy at the fiber tip

An optical fiber carries laser energy to a small treatment zone. In a clinician-selected vascular application, absorption near the tip can heat blood and the vessel wall. The selected 980 nm or 1470 nm wavelength, fiber design and delivery settings influence the thermal interaction.

  1. The fiber guides laser light
  2. Tissue absorbs energy near the tip
  3. Heat remains focused around the delivery zone

Illustrative tissue interactions, not to scale. Treatment response depends on the selected handpiece, settings and individual assessment.

Explore SculptVive for your practice

Request a demonstrationDiscuss your configuration

The device features a dual-wavelength diode laser at 980 nm and 1470 nm, controlled via an 11.6″ true-color touchscreen for precise parameter adjustments. Its compact, portable design makes it clinic-friendly and easy to maneuver. The handpiece offers fiber-coupled delivery, enabling both endolaser (intravascular) treatments and superficial vascular procedures. With a wide pulse-width range from 10 to 3000 ms, it allows for long “thermal” pulses or slow coagulation, and supports fiber diameters of 200–1200 µm via SMA‑905 connectors, providing versatile and customizable treatment options.

Multiple specifications of optical fibers are available (200μm, 300μm, 400μm, 600μm, 800μm, 1000μm, 1200μm ), among which 200 μm and 300 μm micron fibers are very suitable for lipolysis treatment of body parts rich in tiny blood vessels, such as facial lipolysis.

Laser Fiber Design

Two advanced fiber configurations, each designed for specific treatment precision and energy distribution.

Linear Fiber

A precision forward-emission fiber engineered for controlled, targeted laser delivery, enabling highly accurate energy placement for precise tissue interaction and optimized treatment control.

360 V Sculpt Ring Fiber

A ring-shaped radial emission fiber precisely engineered to deliver uniform 360° circumferential energy dispersion, enabling superior tissue interaction for enhanced contouring, consistent coagulation, and optimal skin tightening outcomes.

Advanced medical power supply (IGBT)

Our advanced IGBT based medical power supply delivers exceptional efficiency and performance. Compared to conventional systems, it achieves significantly higher power conversion efficiency with reduced energy loss and minimal heat generation, ensuring stable and reliable operation during extended clinical use.

Operating at frequencies reaching several hundred kilohertz, the system provides ultra fast response times measured in tens of nanoseconds. This allows precise energy delivery and superior pulse control for consistent treatment outcomes.

The highly integrated IGBT module design results in a more compact footprint with reduced weight, improving overall system reliability while supporting high power demands.

Modal Id "brochure-modal"

Request the Product Brochure

Enter your name and email, and we will send the brochure link for this product.

If it does not arrive within a few minutes, check your junk folder.

By submitting, you agree that Apolomed may contact you about your request. See our privacy policy.

Modal Id "contact-modal"

Contact the Apolomed Team

Tell us whether your request is about sales, a product, an order, a partnership, or support. We will route it to the appropriate team and email you a confirmation.

By submitting, you agree that Apolomed may contact you about your inquiry. See our privacy policy.

Modal Id "tech-specs-modal"
Category Specification
Wavelength 980nm / 1470nm
Power 980 nm: 15 W / 30 W; 1470 nm: 15 W
Pulse Duration 10-3000ms
Spot Sizes 0.5, 1, 2, 3mm / Fibers of 200, 300, 400, 600, 800, 1000, 1200 μm with SMA 905 connector
Wattage 1600W
Operating System A-13
Cooling Air Cooling
Frequency (Hz) 1, 2, 3, 5, 10~50Hz
Device Size (L × W × H) 40 x 44 x 34 cm
Device Weight 20.5Kg
Output modesCW, single pulse, repeat pulse
Single-pulse energy980 nm: 0.1–12 J; 1470 nm: 0.1–6 J
Fiber typesLinear and conical
Aiming beam650 nm red diode, <2 mW
Interface11.6-inch true-color touchscreen
Electrical Input100–240 VAC, 50/60 Hz
Modal Id "whats-included-modal"

What’s Included

Each device package arrives with the core components and accessories needed for a smooth setup, ensuring you can integrate the equipment into your workflow quickly and confidently. Everything is organized to support reliable, everyday use from the start.

Support That Adds Real Value

Every purchase is backed by guided onboarding and a full-service warranty that covers both the device and key consumables. This level of support helps protect your investment while ensuring consistent, long-term performance.

Comprehensive Education & Training

To help your team get the most out of the technology, each device includes access to in-depth education and training resources. From operational guidance to best-practice techniques, these programs equip users with the knowledge and confidence needed to deliver safe, effective, and consistent treatments.

Modal Id "more-details"

SculptVive Additional Details

BENEATH THE SURFACE

How the technology works

See how energy is delivered, what it interacts with, and why that interaction matters.

Illustrative optical fiber positioned within a vessel lumen, showing localized thermal interaction near its distal tip.
Fiber-delivered laser energy

Localized energy at the fiber tip

An optical fiber carries laser energy to a small treatment zone. In a clinician-selected vascular application, absorption near the tip can heat blood and the vessel wall. The selected 980 nm or 1470 nm wavelength, fiber design and delivery settings influence the thermal interaction.

  1. The fiber guides laser light
  2. Tissue absorbs energy near the tip
  3. Heat remains focused around the delivery zone

Illustrative tissue interactions, not to scale. Treatment response depends on the selected handpiece, settings and individual assessment.

Explore SculptVive for your practice

Request a demonstrationDiscuss your configuration

This compact dual-wavelength diode laser system is engineered for versatility and precision, combining 980 nm and 1470 nm outputs to address a wide range of vascular and aesthetic applications. Its operation is managed through a large 11.6″ true-color touchscreen that provides intuitive navigation and precise parameter control, making treatments more efficient and user-friendly. Designed with portability in mind, the unit measures just 40 × 44 × 34 cm and weighs approximately 20.5 kg, allowing it to fit comfortably into clinics of any size and making it easy to reposition as needed.

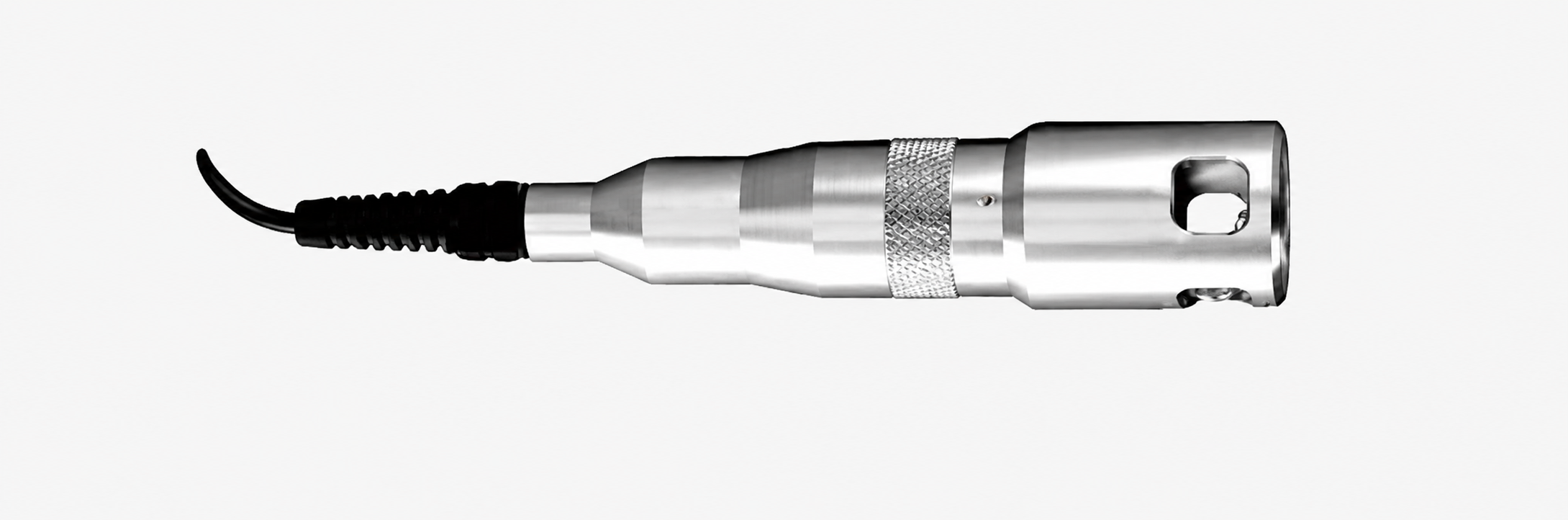

The handpiece is built for maximum adaptability, utilizing fiber-coupled delivery to support both endolaser (intravascular) procedures and superficial vascular work. Its exceptionally wide pulse-width range—from 10 to 3000 ms—gives practitioners the freedom to perform long thermal pulses or slow controlled coagulation depending on clinical goals. To further enhance flexibility, the system supports multiple fiber sizes—200, 300, 400, 600, 800, 1000 and 1200 µm—using SMA-905 connectors, making it suitable for delicate, targeted work as well as higher-energy applications.

Optional Physiotherapy Handpiece available on special request

Each device package includes the main unit, handpiece, user manual, device-specific goggles, package-dependent fibers, and a dust cover. Comprehensive training and guided setup ensure smooth implementation for new users, while a two-year full-service warranty—including consumables—provides peace of mind and dependable long-term operation. Ideal for vascular lesions and 1470 nm-based lifting treatments, this system delivers high-performance results backed by robust technical specifications such as 1–50 Hz frequency range, air-cooling design, and 0.5–3 mm spot size compatibility.

No More Vasvular Impurities

The device features a dual-wavelength diode laser at 980 nm and 1470 nm, controlled via an 11.6″ true-color touchscreen for precise parameter adjustments. Its compact, portable design (40 × 44 × 34 cm, ~20.5 kg) makes it clinic-friendly and easy to maneuver. The handpiece offers fiber-coupled delivery, enabling both endolaser (intravascular) treatments and superficial vascular procedures. With a wide pulse-width range from 10 to 3000 ms, it allows for long “thermal” pulses or slow coagulation, and supports fiber diameters of 200–1200 µm via SMA‑905 connectors, providing versatile and customizable treatment options.

SculptVive Package

Delivery for this device comes with the main unit, user manual, handpiece, Package dependent fibers, device-specific goggles, and a dust cover. Device support includes an extensive training program and device setup. Additional services include a two-year full-service warranty, including consumables.

blank

Cold-pressed steel construction

Strength you can see.
Durability built in.

A robust cold-pressed steel shell gives your SculptVive a strong, protective exterior built for the demands of a busy practice. Its rigid construction helps maintain the enclosure’s shape and protects the technology housed within.

Designed with long-term durability and corrosion resistance in mind, the metal exterior combines a substantial feel with clean lines and a refined professional finish—bringing dependable construction into everyday clinical use.

  • Cold-pressed steel
  • Rigid metal enclosure
  • Refined exterior finish

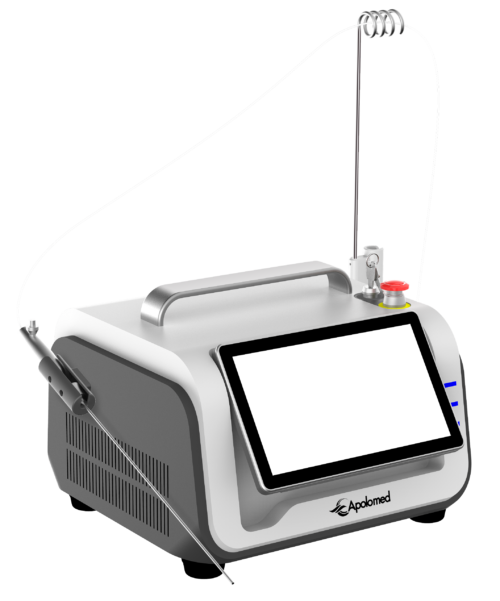

Illustrative angled view of the SculptVive metal housing, panel edges and ventilation details
SculptVive housing · Illustration based on the device.
Close-up of the SculptVive display and controls
SculptVive shown. Screen appearance varies by configuration.

Our latest Android operating system

A responsive experience.
A platform for what’s next.

Our latest Android operating system provides the foundation for a clear, intuitive touchscreen experience. Designed to support efficient startup and responsive navigation, it helps keep everyday device interaction straightforward.

A software platform built with ongoing development in mind provides a foundation for compatible future enhancements, interface refinements and manufacturer-supported updates—helping your system evolve alongside your practice.

  • Intuitive touchscreen
  • Responsive navigation
  • Software update readiness
blank

SculptVive Technical Specs

Learn more about the system’s capabilities and the technology that drives its dependable performance. Explore how its engineered components work together to deliver consistent, high-quality results. See how this platform supports efficient, effective treatments across various aesthetic needs.

Service and Support

We believe long-term success comes from strong partnerships. Apolomed supports distributors and providers before, during, and long after installation through structured product training, clinical education, and responsive technical service.

Our global service network includes regional support teams and dedicated facilities, such as our U.S. distribution and service center in New York. This infrastructure ensures reliable communication, timely service, and consistent support across international markets.

Learn more

Ratings and Reviews

Ryan Spivak, MD – Body by Heart
(5/5) stars
I’ve personally used the Sculptvive device, and the results have been consistently impressive. It delivers noticeable, effective outcomes with a level of reliability that makes it a strong addition to my practice. I’m very satisfied with its performance and look forward to offering it to my clients.

Request the Product Brochure

Enter your name and email, and we will send this product's brochure link.

Request Brochure

Frequently Asked Questions

What products are safe for my face after a laser treatment?

After your laser treatment, avoid strong skincare products like retinoids, chemical peels, exfoliating scrubs, benzoyl peroxide, and harsh bleaching creams. Also, skip fragranced or alcohol-based products. Stick to gentle, soothing, and hydrating skincare until your skin heals.

What should I avoid after a Laser Treatment?

Is patient numbing cream or anesthesia required?

How does the laser target specific spots without damaging surrounding areas?

What is the typical downtime between each laser session?

What does the warranty package include?

How are treatment settings selected for different Fitzpatrick skin types?

Are treatment results permanent?

What wavelengths does SculptVive use?

SculptVive lists 980 nm and 1470 nm diode-laser wavelengths, with output up to 30 W. Confirm the wavelength configuration and accessories on the quotation for your specific unit.

How does SculptVive differ from SlimVive?

SculptVive lists 980/1470 nm wavelengths and fiber options. SlimVive is a 1060 nm diode-lipolysis platform with larger listed treatment windows. They are different systems with different delivery methods and training requirements.

Which fiber options are listed for SculptVive?

The specifications list fibers from 200 to 1200 µm with an SMA 905 connector. Ask which fibers and compatible delivery accessories are included and which must be ordered separately.

What should I ask about fiber replacement and reprocessing?

Request the instructions for each supplied fiber and accessory, including whether it is single-use or reusable, any permitted reprocessing method and replacement criteria. Do not assume the same handling rules apply to all accessories.

How much space does SculptVive occupy?

The listed unit measures 40 × 44 × 34 cm and weighs 20.5 kg. Plan a stable support surface, room for fiber handling and the required electrical and procedural setup before installation.
