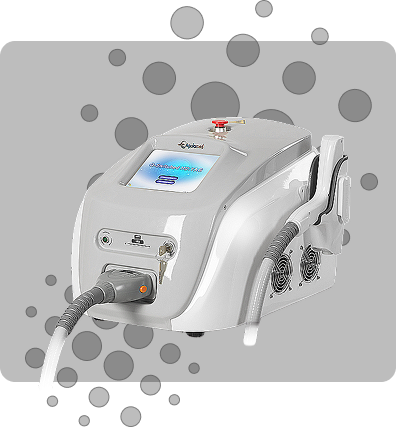

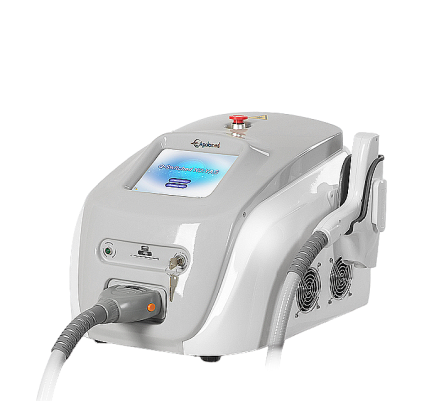

NanoVive Portable
Portable Power. Precision in Every Pulse.
A portable Q-switched Nd:YAG platform for tattoo, pigmentation, scar and rejuvenation workflows.
Device overview
NanoVive Portable at a glance
A portable Q-switched Nd:YAG platform for tattoo, pigmentation, scar and rejuvenation workflows.
- Technology
- ND-YAG Lasers · Q-Switched ND:YAG Laser
- Format
- Portable
- Applications to discuss
- Tattoo Removal · Scars · Pigmentation Disorders · Skin Rejuvenation
- Specifications & documentation
- Find model-specific records · Confirm the supplied model and handpieces with Apolomed.
Technical specificationsOpen NanoVive Portable specifications
- Wavelength
- 1064nm & 532nm
- Pulse Duration
- <10ns (single pulse)
- Spot Sizes
- 1–5mm
- Wattage
- 1000 W
- Operating System
- ARM A-13 CPU, Android
- Cooling
- Advanced Air & Water
- Frequency (Hz)
- 1–10
- Device Size (L × W × H)
- 53 × 40 × 39 cm
- Device Weight
- 25 kg
- Nd crystal — North American devices
- Premium Czochralski-grown Nd single-crystal rod
- Crystal growth — North American devices
- Induction-heated iridium crucible
- Optical coatings — North American devices
- Apolomed coating specifications for long-term durability and consistent optical performance
- Laser cavity — North American devices
- Precision quartz flow-tube and laser-cavity architecture
Application categories support product discussion. They do not establish clearance or suitability for every configuration.
Handpieces and Lens
BENEATH THE SURFACE
How the technology works
See how energy is delivered, what it interacts with, and why that interaction matters.
Short pulses. Localized pigment interaction.
Short laser pulses are absorbed by selected pigment particles. Rapid energy deposition produces thermal and mechanical effects that can fragment tattoo ink; the body's immune processes gradually handle the fragments. Wavelength and pulse duration help determine which pigment is targeted.
- Pigment absorbs the pulse
- Particles fragment
- Gradual biological processing follows
Illustrative tissue interactions, not to scale. Treatment response depends on the selected handpiece, settings and individual assessment.
The system features a 1–5 mm zoom lens that provides precise spot-size adjustment for highly accurate treatment across a range of clinical indications. Its integrated 532 nm KTP lens enables seamless transitioning between 1064 nm and 532 nm wavelengths, enhancing versatility and workflow efficiency. Additionally, the 7 mm beam expander tip supports treatment of larger areas, allowing providers to address broader indications quickly and effectively.
Our advanced IGBT-based medical power supply delivers exceptional efficiency and performance. Compared to conventional systems, it achieves significantly higher power conversion efficiency with reduced energy loss and minimal heat generation, ensuring stable and reliable operation during extended clinical use.
Operating at frequencies of several hundred kilohertz, the system provides ultra-fast response times measured in tens of nanoseconds. This allows precise energy delivery and superior pulse control for consistent treatment outcomes.
The highly integrated IGBT module design results in a more compact footprint with reduced weight, improving overall system reliability while supporting high power demands.
NanoVive Portable Additional Details
BENEATH THE SURFACE
How the technology works
See how energy is delivered, what it interacts with, and why that interaction matters.
Short pulses. Localized pigment interaction.
Short laser pulses are absorbed by selected pigment particles. Rapid energy deposition produces thermal and mechanical effects that can fragment tattoo ink; the body's immune processes gradually handle the fragments. Wavelength and pulse duration help determine which pigment is targeted.
- Pigment absorbs the pulse
- Particles fragment
- Gradual biological processing follows
Illustrative tissue interactions, not to scale. Treatment response depends on the selected handpiece, settings and individual assessment.
Nanosecond lasers remain widely valued because they deliver strong, reliable photothermal and photoacoustic energy that effectively breaks down pigment in both cosmetic and medical applications. Their pulse duration—measured in billionths of a second—creates sufficient peak power to fragment tattoo ink and treat many epidermal and dermal pigmented lesions, while maintaining a balance of controlled heat that can enhance therapeutic impact. This makes nanosecond platforms suitable for patients seeking dependable pigment clearance without the need for more advanced or specialized technology.
They also offer a high degree of versatility and consistency, making them a trusted choice for clinics handling a broad range of tattoo colors, especially darker inks that respond well to 1064 nm nanosecond wavelengths. Because the design of these systems has been refined over many years, providers appreciate their predictable performance, stable output, and straightforward operating parameters. This reliability makes training easier and reduces variability in outcomes, particularly for high-volume practices.
Nanosecond lasers are additionally attractive due to their cost-effectiveness and accessibility. They typically carry a lower investment cost than picosecond systems while still delivering strong clinical results for tattoos and pigment. This combination of affordability, proven technology, and broad application range enables many practices to offer effective pigmentation services without the financial or operational demands of newer platforms.
| Category | Specification |
|---|---|
| Wavelength | 1064nm & 532nm |
| Pulse Duration | <10ns (single pulse) |
| Spot Sizes | 1–5mm |
| Wattage | 1000 W |
| Operating System | ARM A-13 CPU, Android |
| Cooling | Advanced Air & Water |
| Frequency (Hz) | 1–10 |
| Device Size (L × W × H) | 53 × 40 × 39 cm |
| Device Weight | 25 kg |
What’s Included
Each device package arrives with the core components and accessories needed for a smooth setup, ensuring you can integrate the equipment into your workflow quickly and confidently. Everything is organized to support reliable, everyday use from the start.
Support That Adds Real Value
Every purchase is backed by guided onboarding and a full-service warranty that covers both the device and key consumables. This level of support helps protect your investment while ensuring consistent, long-term performance.
Comprehensive Education & Training
To help your team get the most out of the technology, each device includes access to in-depth education and training resources. From operational guidance to best-practice techniques, these programs equip users with the knowledge and confidence needed to deliver safe, effective, and consistent treatments.
Small but Powerful
The Q-switched YAG laser's specific wavelength penetrates the skin and, according to the theory of selective photothermolysis, breaks the pigmented cells into tiny pieces that the body can naturally absorb. The process effectively removes freckles and other pigmentation spots. The 1064nm setting shatters and removes black and blue pigments, while the 532nm setting targets red, pink, purple, and brown pigments in tattoos or other pigmented areas - all without harming the surrounding healthy skin.
Inside our Nd:YAG technology
Engineered for Optical Performance
For North American DevicesThe premium crystal and quartz-cavity specifications described below apply to our North American device configurations.
Premium Czochralski-Grown Nd Crystal
Our North American Nd laser systems use high-optical-quality Nd single-crystal rods grown using the Czochralski process in an induction-heated iridium crucible.
Crystal quality & beam performance
Carefully controlled crystal growth helps achieve high Nd³⁺ dopant uniformity, excellent optical homogeneity, low internal stress and reduced wavefront distortion. These characteristics are important for maintaining consistent laser propagation through the gain medium and supporting a clean, stable beam with uniform energy distribution across the treatment spot.
We also specify our own optical coating requirements to support long-term durability and consistent optical performance in our North American Nd laser systems.
Rather than selecting laser rods based solely on cost, we specify higher-grade crystals for their optical quality, consistency and ability to withstand the high peak-energy demands of Q-switched and picosecond Nd systems.
Precision Quartz Laser Cavity
Our North American Nd platforms utilize a precision quartz flow-tube and laser-cavity architecture selected for its high optical transmission, thermal stability and resistance to thermal shock.
Cooling, pumping & output stability
The quartz assembly helps isolate and cool the Nd crystal while allowing efficient transmission of pump energy from the flashlamp. Combined with optimized cavity geometry and cooling, this helps maintain stable operating temperatures, consistent pumping of the crystal and repeatable laser output during high-energy operation.
The result is a laser head engineered around beam quality, energy stability and long-term optical performance, rather than simply minimizing component cost.
NanoVive Portable Package
Delivery for this device comes with the main unit, user manual, handpiece lens dependent on the package purchased, device-specific goggles, and a dust cover. Device support includes an extensive training program and device setup. Additional services include a two-year full-service warranty, including consumables.
NanoVive Portable Technical Specs
Learn more about the system’s capabilities and the technology that drives its dependable performance. Explore how its engineered components work together to deliver consistent, high-quality results. See how this platform supports efficient, effective treatments across various aesthetic needs.
Service and Support
We believe long-term success comes from strong partnerships. Apolomed supports distributors and providers before, during, and long after installation through structured product training, clinical education, and responsive technical service.
Our global service network includes regional support teams and dedicated facilities, such as our U.S. distribution and service center in New York. This infrastructure ensures reliable communication, timely service, and consistent support across international markets.
Learn moreRequest the Product Brochure
Enter your name and email, and we will send this product's brochure link.
Request Brochure
Related Treatments
Scars
Tattoo Removal
Pigmentation Disorders
Skin Rejuvenation
Frequently Asked Questions
What products are safe for my face after a laser treatment?
What should I avoid after a Laser Treatment?
Is patient numbing cream or anesthesia required?
Who cannot receive treatments?
How does the laser target specific spots without damaging surrounding areas?
What is the typical downtime between each laser session?
What does the warranty package include?
How are treatment settings selected for different Fitzpatrick skin types?
Are treatment results permanent?
What wavelengths does NanoVive Portable provide?
The specification page lists 1064 nm and 532 nm Nd:YAG wavelengths, with a single-pulse duration below 10 ns. Confirm the supplied handpieces and lenses on the equipment list for your unit.
How does NanoVive Portable differ from the standalone NanoVive?
The portable model has a smaller tabletop format, with listed dimensions of 53 × 40 × 39 cm and a weight of 25 kg. The standalone NanoVive has a different specification and option set, so compare the pulse modes, lenses and available accessories as well as the size.
Is NanoVive Portable a picosecond laser?
NanoVive Portable is a Q-switched Nd:YAG system with its pulse duration listed in nanoseconds. PicoVive is the dedicated picosecond platform in the range. The pulse specification is an important distinction when comparing the two.
Which spot sizes are listed for NanoVive Portable?
The listed spot-size range is 1–5 mm. Ask which lenses are included and whether additional compatible optics are available for your intended workflow.
Can NanoVive Portable be moved between treatment rooms?
Its tabletop format can suit a practice that needs a compact installation, but the listed 25 kg weight still requires suitable handling. Follow the transport instructions and confirm a stable work surface, electrical supply and cooling setup in each room.
