IPL SHR HS-620
Short Description:
It has 2 different specification: 1 IPL SHR or 2 handles(IPL SHR+RF). HS-620 combines in-motion SHR technology and in-motion BBR(Broad Band Rejuvenation) technology in one single unit, by delivering lower fluence at a high repetition rate for great comfort and efficacy for whole body permanent hair removal and rejuvenation/skin toning.
Specification Of HS-620
| Handpiece(Single) | 1*IPL SHR/EPL |
| Handpiece(Double) | 2*IPL1*IPL SHR + 1*RF |
| Spot size | 12*35mm ,15*50mm |
| Wavelength | 420~1200nm |
| Filter | 420/510/560/610/640~1200nm, 690~950nm,SHR |
| IPL energy density | 1~30J/cm²(10-60 level) |
| SHR repetition rate | 1-5Hz |
| RF tip dimension | Φ18, Φ28, Φ37mm |
| Operate interface | 8’’ True color touch screen |
| RF output power | 200W (optional) |
| Cooling system | Advanced air & water cooling system |
| Power supply | AC110 or 230V,50/60Hz |
| Dimension | 66*43*48cm (L*W*H) |
| Weight | 30Kgs |
* OEM/ODM project supported.
Advantage Of HS-620
It has 2 different specification: 1 IPL SHR or 2 handles(IPL SHR+RF). HS-620 combines in-motion SHR technology and in-motion BBR(Broad Band Rejuvenation) technology in one single unit, by delivering lower fluence at a high repetition rate for great comfort and efficacy for whole body permanent hair removal and rejuvenation/skin toning.
PRECISION COOLING
Sapphire plate on handpiece provides continuous cooling, even at maximum power, to cool the skin before, during and after treatment, which makes it effective & comfortable for skin types I to V and ensures maximum patient comfort.
LARGE SPOT SIZE & HIGH REPETITION RATE
With the large spot sizes 15x50mm / 12x35mm and high repetition rate, more patients can be treated in less time with IPL SHR and BBR function.
INTERCHANGEABLE FILTERS
420-1200nm spectrum interchangeable filter
Different filters for wide range treatment programs
SMART PRE-SET TREATMENT PROTOCOLS
You can adjust the settings precisely in PROFESSIONAL MODE for the skin, colour and hair type and the hair thickness, thereby offering clients maximum safety and effectiveness in their personalized treatment.
Using the intuitive touch screen, you can select the required mode and programs. The device recognizes different handpiece types used and automatically adapts the configuration circle to it, giving pre-set recommended treatment protocols.
Application Of HS-620
TREATMENT APPLICATIONS: Permanent hair removal/reduction, Vascular lesions, Acne treatment, Epidermal pigment removal, Spots and freckle removal, Skin toning

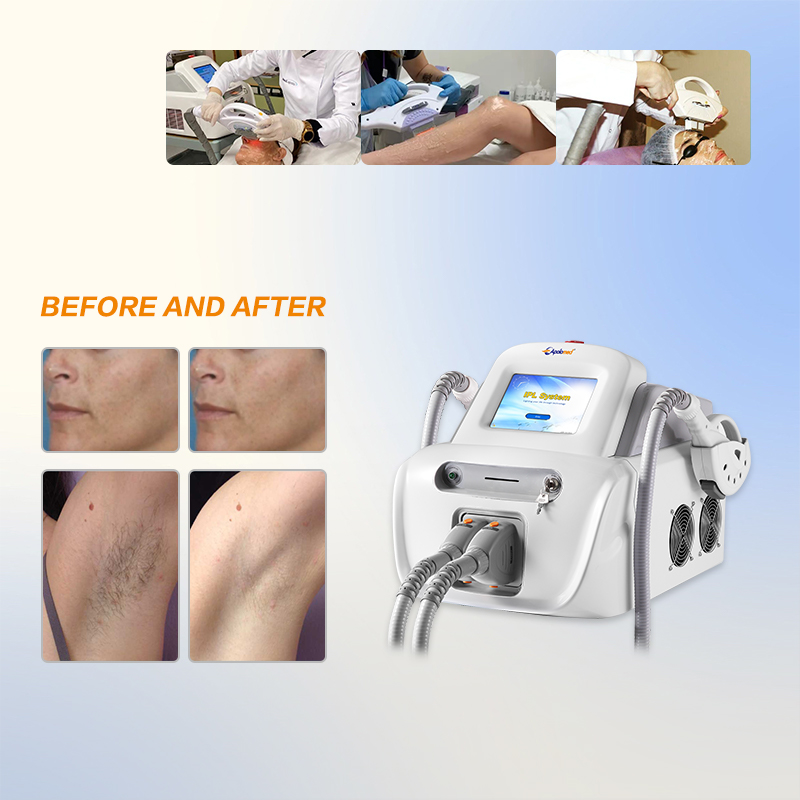

Before & After
