Fractional Laser Hot Sale Ablative Fractional CO2 Laser Resurfacing equipment

December 10, 2025 Under Archive

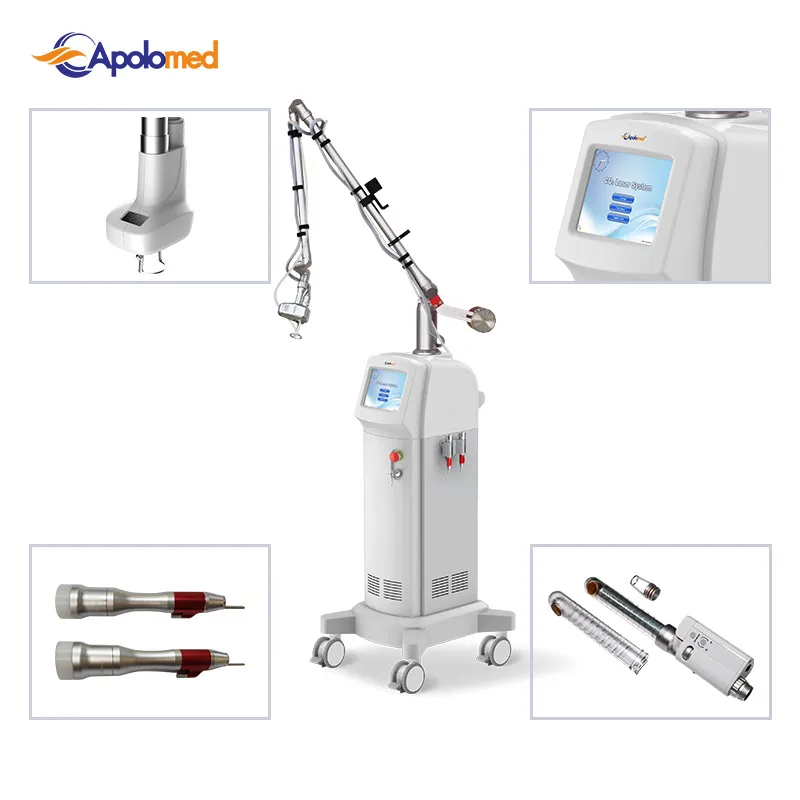

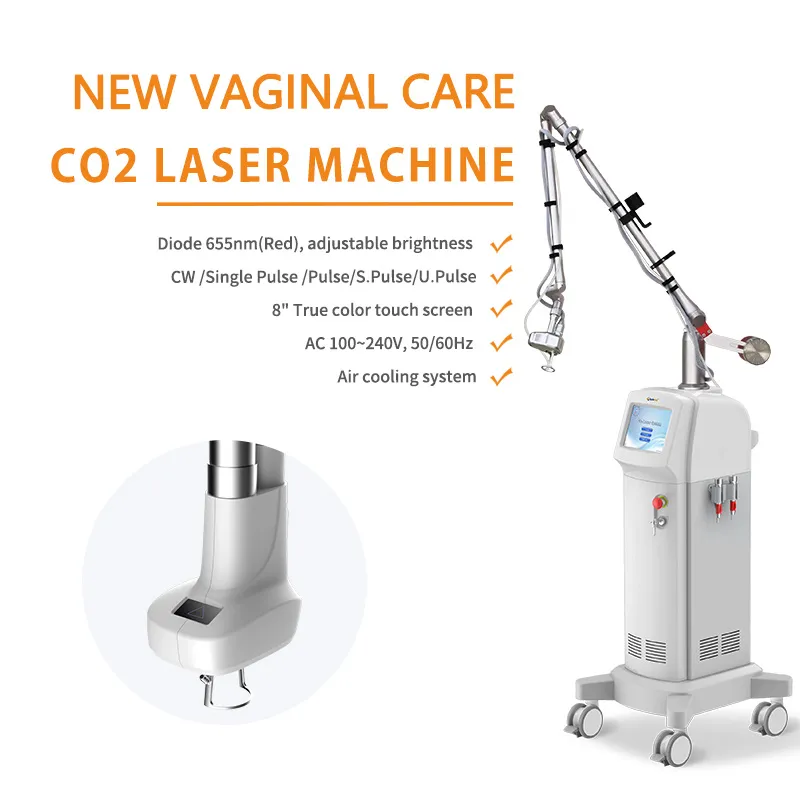

CO2 Laser Resurfacing Beauty Equipment

Principle of CO2 fractional laser machine

CO2 laser system generates a 10,600nm wavelength, which is absorbed by water in the tissue. The laser energy heats up the water until it reaches a boiling point, causing the evaporation of the affected tissue. Some heat is absorbed by tissue adjacent to the ablated target area, causing tissue coagulation, which induces hemostasis (the cessation of bleeding) as well as thermal stimulation



Applications of CO2 fractional laser machine
  • Skin resurfacing (Rough skin, coarse pores, dark skin, light damage…)
  • Wrinkles (Crow’s feet, head lines, Sichuan characters, Decree lines)
  • Pigmented nevus, epidermal pigmentation (freckles, etc.), epidermis (all kinds of warts) cutting
  • Scar Repair (acne scar, hypertrophic scar, burn scar, sunken scar, etc.)
  • Other applications (syringoma, condyloma, seborrheic, etc.)
  • Viginal care (Vaginal wall tightening, collagen remodeling, thicker and more resilient, labium whitening)
Specifications

Specifications of CO2 fractional laser machine

Wavelength 10600nm
Laser Medium RF Sealed-off CO2 laser
Beam delivery Articulated arm
Function mode: Fractional/ Vaginal care
Model No. HS-411
Laser Power 35W
Pulse width 0.1~50ms/dot
Energy 1~300mJ/dot
Density 25~3025PPA/cm2 (12level)
Scan area 20x20mm

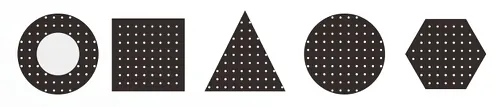

Shape Square, Hexagon, Triangularm circular, freehand
Pattern Array, Random
Function mode: Normal
Operation mode CW/ Single Pulse/ Pulse/ S.Pulse/ U.Pulse
Pulse width Pulse 5~500ms Single pulse 1~500ms S.Pulse 1~4ms U.Pulse 0.1~0.9ms
Aiming beam Diode 655nm (Red), adjustable brightness
Operation interface 8″ true color touch screen
Cooling system Air cooling system
Power supply AC 100V~240V, 50/60HZ
Dimension 50*45*113cm (L*W*H)
Weight 55kgs
Advantages

1.Easy Drawing regular & irregular shapes for different area treatment
2.Ultra-Short Pulse Duration make sure safety and comfortable treatment
3.Various indications with one machine
4.Adjustable spot density to meet versatile treatment
5.Easy setup and quick treatments
6.RF ID / IC management control design for providing different business operations models ( ie. member card, Rental…. )
7.Apply Android operation system, is capable for more functions of saving customer database, developing applications, and customizing the interface.
