980 Diode Laser Machine 980+1470 nm Laser Body Slimming Device-HS 895
Specification Of HS-895
| Laser output power | 980nm | 1470nm | |
| 895 | 15W | 15W | |
| 895A | 30W | 15W | |
| Output modes | 500mJ:1064nm,250mJ:532nm | ||
| Pulse width | 10-3000ms | ||
| Pulse Repetition rate | 1,2,3,5,10-50Hz | ||
| Single pulse Energy | 0.1-12J | 0.1-6J | |
| Repeat pulse power | 0.1-12W | 0.1-9W | |
| Transmission system | Fibers of 400,600,800um,with SMA 905 connector | ||
| Aiming beam | Diode 650nm(red),≤2mW | ||
| Cooling system | Air cooling | ||
| Control mode | 11.6’’ True color touch screen | ||
| Power supply | AC 100-240v,50/60Hz | ||
| Dimensions | 40*44*34cm(L*W*H) | ||
| Weight | 20.5Kgs | ||
Application Of HS-895
● Vascular Lesions Therapy
● Spider Veins
● Cherry Angiomas
● Proliferative Lesions
● Linear anitelectasis
● Pain relief
● Physiotherapy
● Fat removal
Working Principle Of HS-895
Based on theory of "selective laser photothermal", 980nm diode laser system uses specific 980nm wavelength to penetrate into skin for vasular treatment. The laser irradiation lesion, under laser irradiation, hemoglobin and red pigment capillaries to maximize absorption of laser energy, solidification occurs, blocking blood vessels, capillaries shrink, leading to intravascular coagulation, finally metabolic degradation. Due to the specific 980nm wavelength of the laser, it assures normal intact skin tissue architecture in the greatest degree during the vascular treatment and also ensures a good therapeutic effect without damaging superfacial skin.

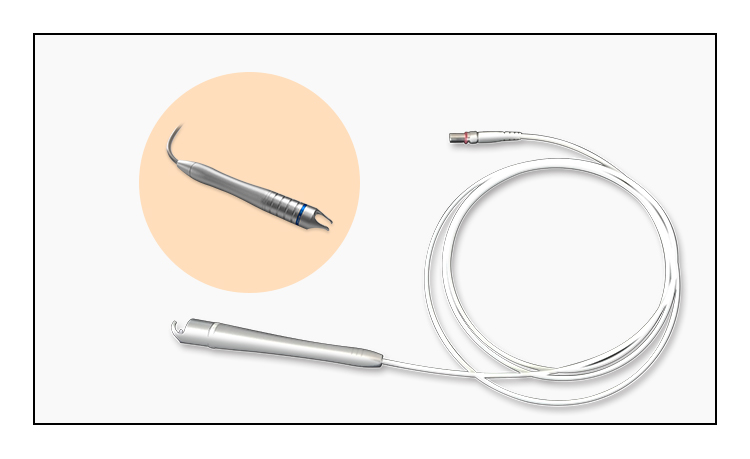

Vascular removal
980nm laser is the optimum absorption spectrum of porphyrin vascular cells. Vascular cells absorb the high-energy laser of 980nm wavelength, solidification occurs, and finally dissipated.
To overcome the traditional laser treatment redness large area of burning the skin, professional design hand-piece, enabling the 980nm laser beam is focused onto a 0.2-0.5mm diameter range, in order to enable more focused energy to reach the target tissue,while avoiding burn the surrounding skin tissue.

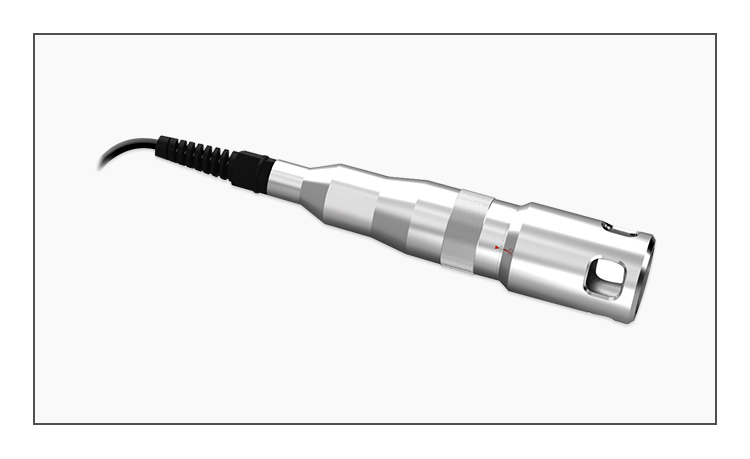

Handpiece
980nm semiconductor fiber-coupled laser to generate thermal energy stimulation through lens focusing ilumination, and uses the biological effects of laser to act on the human body, enhance capillary permeability and increase ATP production.
The semiconductor laser therapy device uses a 980nm wavelength fiber-coupled laser to treat the needle with a disposable lipolysis fiber, precisely locates excess fat and fat in the body, directly hits the target tissue fat cells, and rapidly dissolves and liquefies.
