You encounter the nd yag laser machine as a powerful device that uses solid-state technology with a 1064nm wavelength. The nd:yag laser stands out in the aesthetics industry for deep tissue penetration and versatility in skin treatment. Its popularity continues to grow, making knowledge of its operation essential for safe, effective results.
Nd YAG Laser Machine Overview
What Is an Nd:YAG Laser
You encounter the nd:yag laser as a specialized device that uses neodymium-doped yttrium aluminium garnet as its gain medium. This crystal structure forms the foundation of solid-state lasers, allowing for efficient energy conversion and high beam quality. The nd:yag laser machine operates primarily at a wavelength of 1064 nm, which penetrates deep into tissue and minimizes damage to surrounding areas. This wavelength makes the technology highly effective for medical applications, including dermatology, ophthalmology, and laser surgery.
You benefit from the four-level energy system of the nd:yag laser, which enables efficient excitation and stable output. Manufacturers often use flashlamps or laser diodes to pump the crystal, with diode-pumped systems offering greater stability and longevity. The design of the nd:yag laser machine ensures high efficiency, precision, and reliability, making it suitable for a wide range of clinical and cosmetic procedures.
Key Features and Technology
When you choose an nd yag laser machine, you gain access to advanced features that set it apart from other laser technologies. The Apolomed HS-290A serves as a prime example of innovation in this field. You experience the benefits of Q-switching technology, which delivers short, high-energy pulses for effective treatment of pigmented lesions, tattoo removal, and skin rejuvenation. Clinical studies show that Q-switched nd:yag lasers achieve excellent outcomes, such as complete resolution of pigmented macules and high response rates for freckles and Nevus of Ota.
You also benefit from the flat-top beam profile of the HS-290A, which ensures even energy distribution and enhances both safety and efficacy. The machine offers a maximum pulse energy of 2800mJ and multiple operating modes, including Q-switched and SPT, allowing you to tailor treatments to individual needs. The adjustable repetition rates and spot sizes (from 2mm to 18mm) provide versatility for both precise and broad treatment areas.
Patient comfort remains a priority with the integration of advanced cooling systems. The HS-290A features air and water cooling, with the option for TEC cooling, which helps maintain skin temperature and reduces discomfort during procedures. You find that cooling methods such as cryogen spray, Zimmer cooling, and sapphire tip contact efficiently protect the epidermis, minimize pain, and prevent thermal injury.
You interact with a user-friendly interface on the HS-290A, featuring a 9.7-inch true color touch screen that simplifies navigation and treatment adjustments. The machine incorporates external and self-restoration energy calibration, ensuring consistent performance and safety. The IC management control design, powered by an ARM-A9 CPU and Android O/S 4.1, guarantees smooth operation.
When you invest in an nd yag laser machine, you receive a device that offers high beam quality, efficiency, and low operational costs. The technology provides stability, safety, and precision, making it suitable for various materials with minimal thermal deformation. You also benefit from regulatory approvals such as FDA clearance and CE marking, which confirm the machine’s compliance with international safety and performance standards.
You find that the average cost of an nd yag laser machine is approximately $20,425, with treatment sessions in clinics ranging from $250 to $300. Although some lower-cost treatments may seem attractive, they often require many more sessions, resulting in higher overall expenses.
If you plan to operate an nd:yag laser, you should pursue specialized training and certification. Courses such as the Q-Switched YAG Laser Course and cosmetic laser training provide hands-on practice and internationally recognized certificates, ensuring you are well-versed in safety and operational procedures.
How Nd:YAG Laser Works
Laser Generation and Mechanism
You interact with the nd:yag laser as a sophisticated device that transforms electrical energy into a precise beam of light. The machine operates at a wavelength of 1064 nm, which allows you to target deeper layers of skin without harming the surface. The laser uses fiberoptic delivery to produce a pulsed beam, enhancing heat penetration and making it more effective than diode lasers for certain treatments.
When you activate the nd:yag laser, the energy travels through the skin and is absorbed by pigments such as melanin and hemoglobin. This absorption leads to vascular stasis and triggers the coagulation cascade, which is essential for treating vascular lesions and pigmented areas. The laser penetrates up to 4 mm into tissue, creating a zone of thermal injury that is effective for coagulation but does not cut tissue. You find that the wavelength is poorly absorbed by water, which means the laser targets pigments rather than causing widespread tissue damage.
You can select between different operating modes depending on your treatment goals:
● Q-switched mode delivers extremely short pulses (about 5 nanoseconds), making it ideal for breaking up tattoo ink and treating pigmented lesions.
● Long pulsed nd:yag laser mode uses longer pulses (around 300 microseconds), which may penetrate deeper into the dermis and enhance skin remodeling.
● Both modes show similar results in reducing pore size and sebum levels, so you can choose the mode that best fits your patient’s needs.
Safety and Precision
You rely on the nd:yag laser for its advanced safety features, which protect both you and your patients during procedures. Modern machines include several safeguards:
| Safety Feature | Description |
|---|---|
| Key Switch | Prevents unauthorized use by requiring a key to operate the laser. |
| Safety Interlock Dongle | Ensures the device cannot function unless properly connected. |
| Power Indicator | Provides a visual cue when the laser is powered on. |
| Aperture Shutter | Blocks the beam when not in use, preventing accidental exposure. |
| Emission Delay | Introduces a delay before activation, giving you time to prepare. |
You benefit from precise energy calibration systems. For example, some devices use automatic calibration with feedback from an energy monitor, which adjusts the output for stable performance. You can fine-tune parameters in small increments, such as 0.1 mJ, to ensure accurate results. Two-point focusing mechanisms with tight tolerances help you deliver energy exactly where needed. Continuous adjustment of the plasma ball’s position further enhances precision.
Patient comfort remains a priority. Advanced cooling systems, such as air and water cooling or TEC cooling, maintain skin temperature and reduce discomfort. These innovations make procedures virtually pain-free and minimize the risk of thermal injury.
Recent advancements in nd:yag laser technology have improved safety and outcomes. Fractional and hybrid fractional lasers allow you to target imperfections with minimal downtime. AI integration optimizes clinical precision and healing. You can now treat a broader spectrum of skin tones, including darker complexions, with confidence.
You must consider patient demographics when planning treatments. Most patients fall within the 24 to 78 age range and have Fitzpatrick skin types II or III. Outcomes may vary based on age, skin type, and the specific condition being treated. For example, patients with erythematotelangiectatic rosacea often respond better than those with papulopustular rosacea.
You find that the nd:yag laser combines cutting-edge technology, robust safety features, and precise energy delivery to provide reliable outcomes for a wide range of skin treatments.
Nd:YAG Laser Applications
You rely on the nd yag laser machine for a wide range of clinical and cosmetic uses. The most common applications include tattoo removal, pigment correction, skin rejuvenation, vascular lesion treatment, and hair removal. The versatility of the nd:yag laser makes it a preferred choice for practitioners who want to address multiple skin concerns with one device.
Tattoo and Pigment Removal
You achieve impressive results with the nd:yag laser for tattoo and pigment removal. Clinical studies show that this technology delivers high clearance rates with minimal risk of hypopigmentation or scarring. The table below compares outcomes from several studies:
| Study | Laser Type | Results | Notes |
|---|---|---|---|
| Leuenberger et al. | QS ruby, QS Nd:YAG, QS alexandrite | QS ruby cleared more tattoos, but QS Nd:YAG had 0% hypopigmentation | QS Nd:YAG safer for skin tone |
| Jones et al. | QS Nd:YAG | 75-95% clearance in 8 of 15 tattoos after 3-4 treatments | Minimal skin lightening |
| Lapidoth et al. | QS Nd:YAG, QS ruby | 75-100% clearance in 92% of patients after 3-6 treatments | No scarring or permanent changes |
You also benefit from a low incidence of side effects. In a large study, only 0.28% of patients experienced hypertrophic scarring, and these cases were mild and not disfiguring.
Skin Rejuvenation and Hair Removal
You use the nd:yag laser to rejuvenate skin, reduce wrinkles, and improve texture. Studies report significant improvements in pore size, collagen production, and overall skin quality. The table below highlights key findings:
| Study | Findings |
|---|---|
| Roh et al. | Reduced enlarged pores in all patients |
| Urdiales-Gálvez et al. | Marked improvements in face and neck rejuvenation |
| Akerman et al. | Stimulated collagen and dermal remodeling in scarred skin |
| Wu et al. | Improved texture and photoaging with shorter healing times |

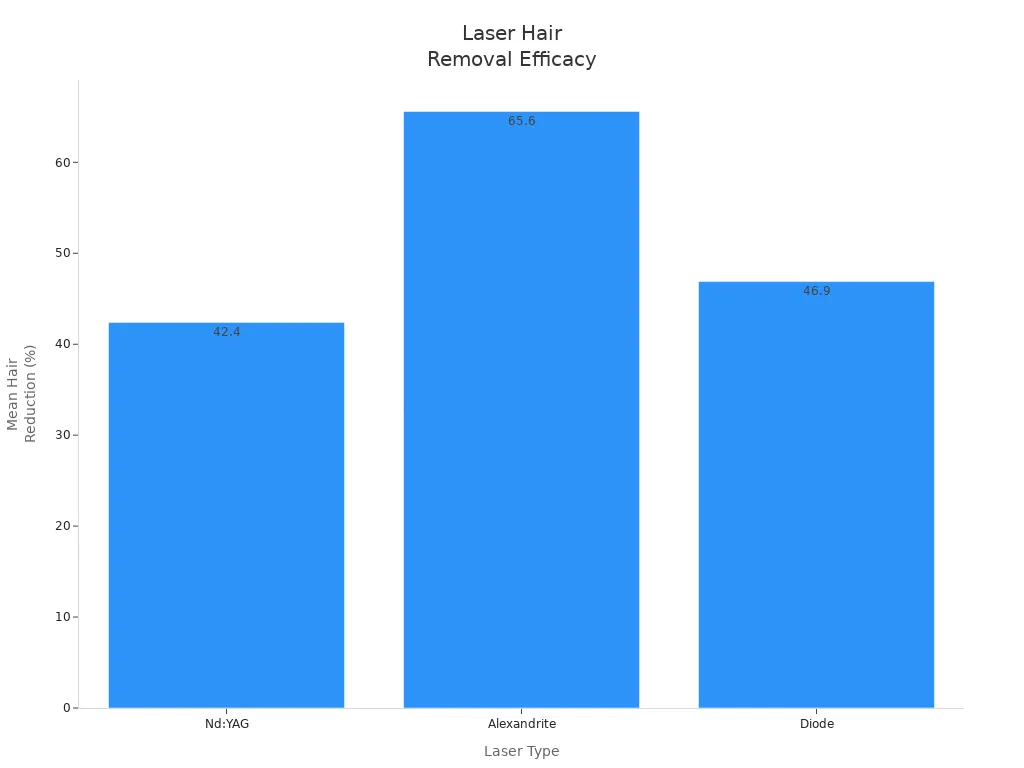

For hair removal, the nd:yag laser offers a safe option for all skin types. While the mean hair reduction is 42.4%, patient satisfaction remains high. You can see the comparison below:
Long Pulsed Nd:YAG Laser Benefits
You gain unique advantages when you use the long pulsed nd:yag laser. The longer wavelength penetrates deeper and reduces scatter, making it ideal for treating darker skin types and larger areas. Clinical research confirms that this approach is more effective for hair removal in individuals with darker skin compared to intense pulsed light. You can confidently treat a diverse patient population with reliable results.
You benefit from the nd:yag laser’s advanced technology and safety profile, making it ideal for professional skin treatment.
| Application Area | Description |
|---|---|
| Tattoo Removal | Effective for diverse ink colors |
| Hair Removal | Suitable for darker skin tones |
| Skin Rejuvenation | Improves texture and reduces downtime |
| Vascular Lesion Care | Precision targeting for reliable treatment |
The Apolomed HS-290A offers intuitive controls and versatile wavelengths, enhancing your results.
